Casa Patio
Tap a point to open the fixture in 3D
Fixtures in 3D

Four layers,
one atmosphere

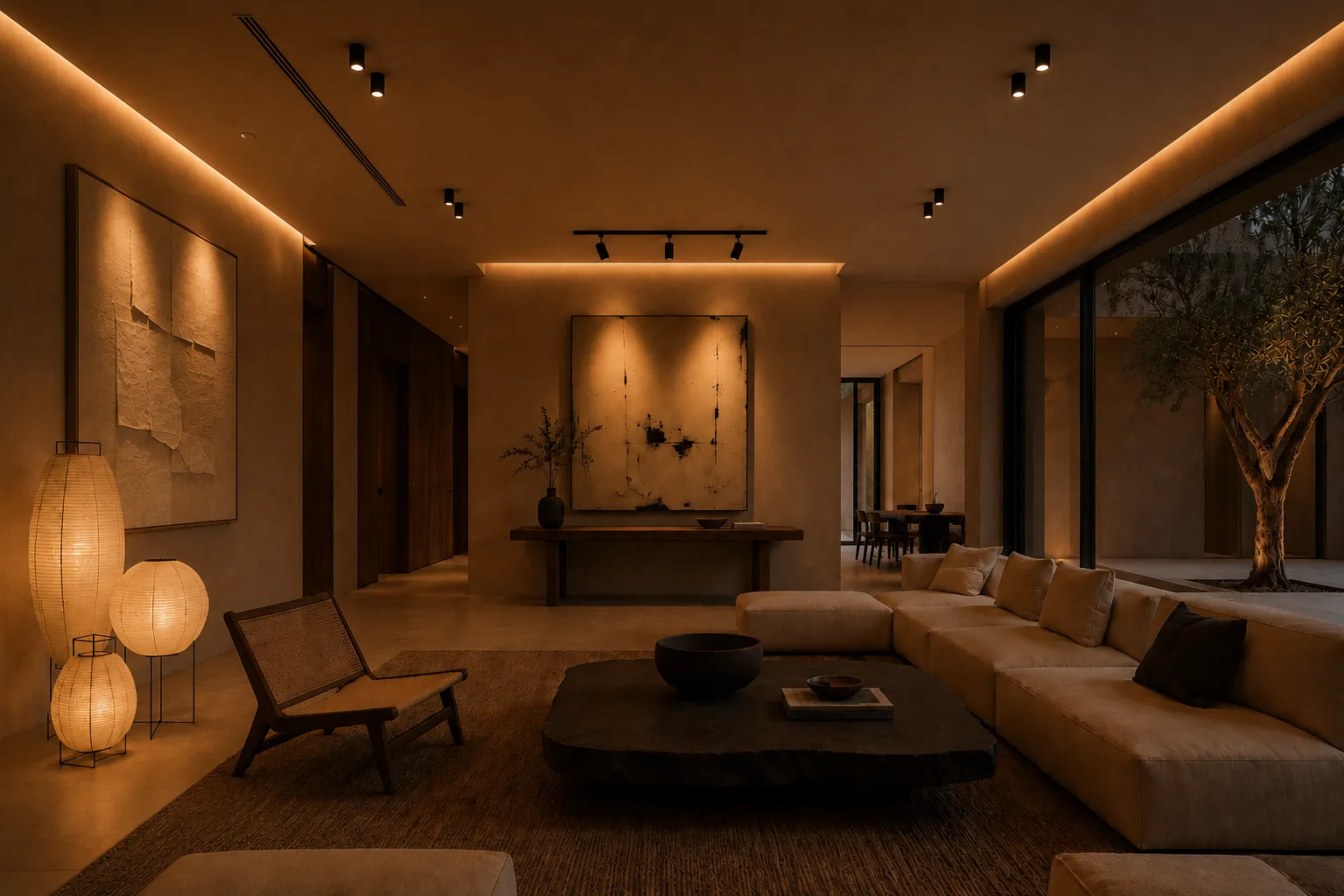

No single fixture makes the room. The cove lifts the ceiling, the downlights carry the floor, the track puts the art in focus and the lanterns bring the light down to human scale.

The numbers behind
the atmosphere

Each scene balances illuminance, power and load density to do its job without wasting energy.

Daybreak 220lx
Power
184 W
Density (LPD)
3.1 W/m²
Layers
Cove 40%, art track 60%, daylight
Golden hour Host scene 120lx
Power
262 W
Density (LPD)
4.4 W/m²
Layers
Cove 70%, downlights 50%, track 80%, decoratives
Moonlight 35lx
Power
74 W
Density (LPD)
1.2 W/m²
Layers
Art track 40%, decoratives 100%

Estimated design values at the work plane (0.75 m) and on the art wall. Photometric verification is performed with the manufacturer's IES files during engineering.
